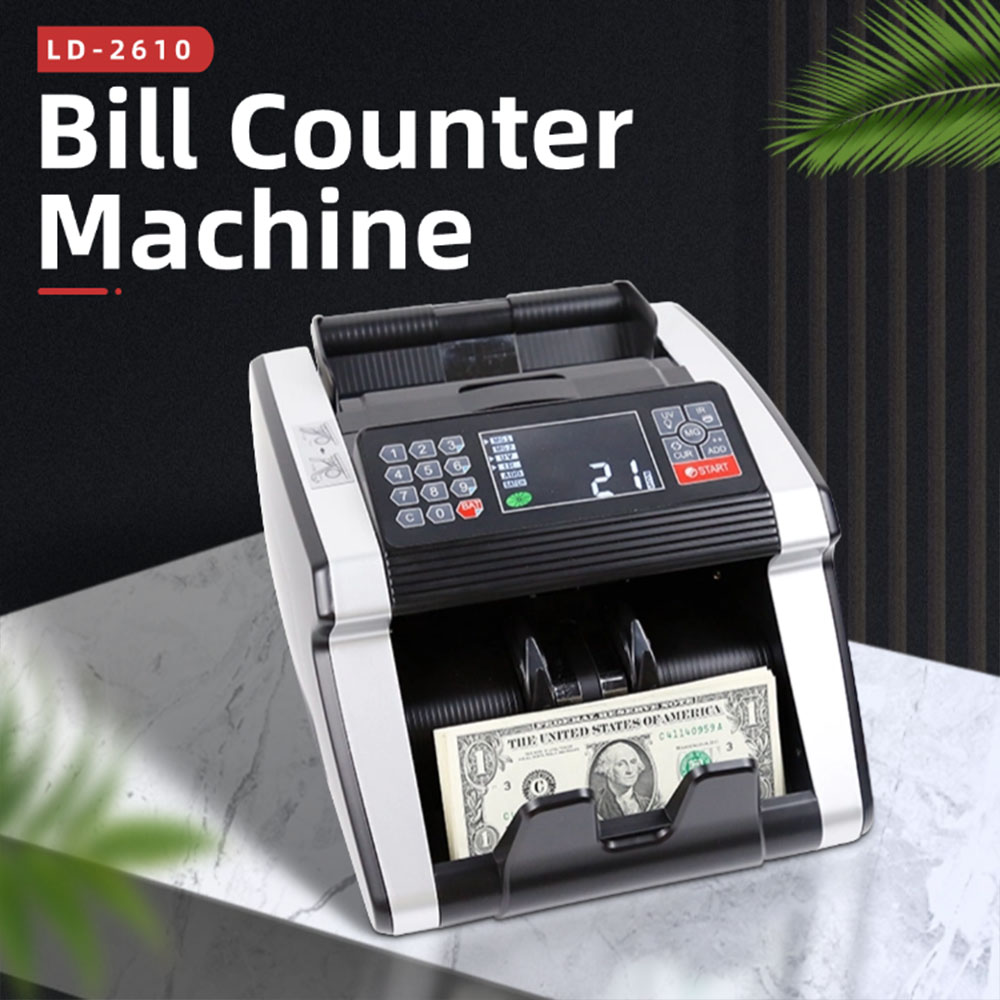

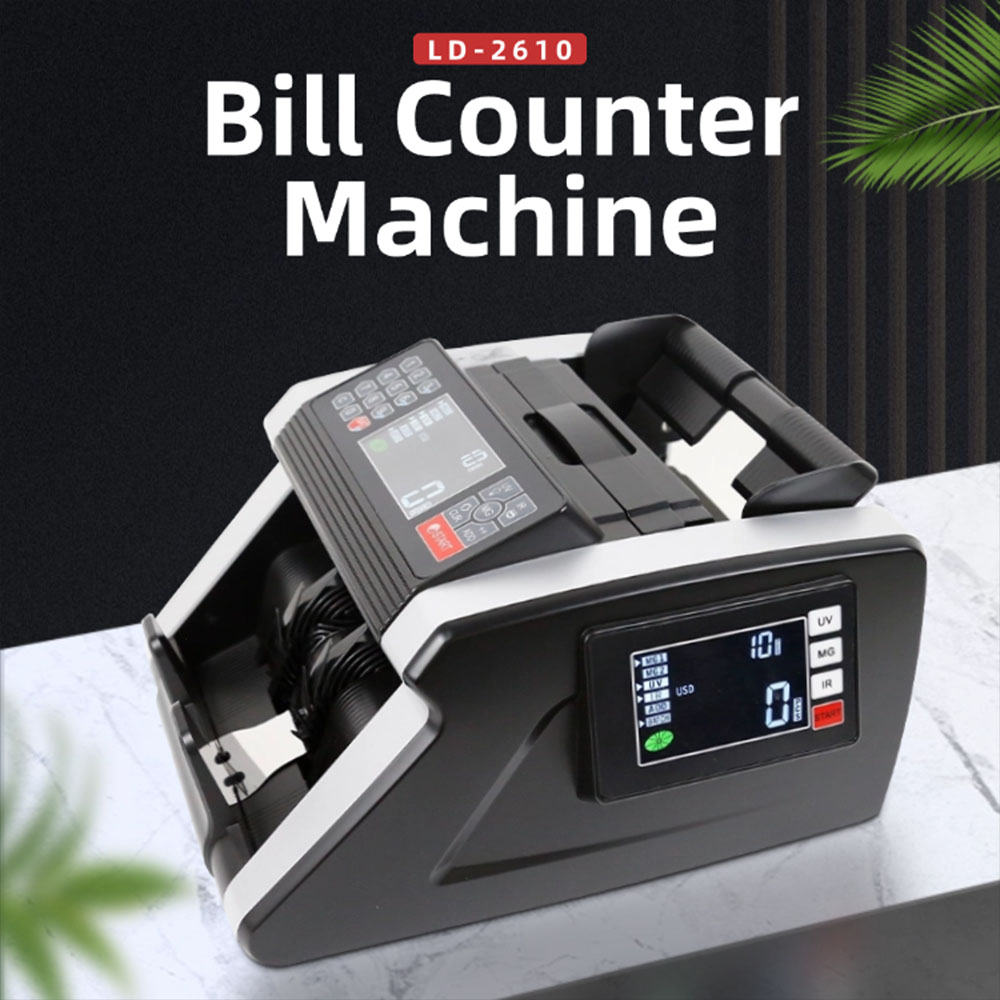

LD-2610 Business Grade Multi Currency Bill Counter With ADD Function and Fake Note Detection System

Advanced Business-Grade Money Counter with Dual Display, Fake Note Detection, and Bill Sorting for Banks and Retail

INQUIRY

Description Details Video Download

CIS And Printer Function Money Counter With High Capacity For Europe USA Latin America Markets
Self Examination Dual Display Money Counter With RoHS Certification And High Accuracy Bill Sorting
Advanced Currency Counter With Dual CIS Sensor UV MG IR Detection And TFT Color Screen For Banks

Frequently Asked Questions - LD-2610

1. What does the LD-2610 count and detect?

The LD-2610 is a business-grade multi-currency bill counter with ADD function and fake note detection: automatic half-note, chained-note and double-note detection, suitable for most currencies in the world.

2. How fast does the LD-2610 count and what is its capacity?

900 pieces per minute with a 130-piece stacker capacity.

3. What displays does the LD-2610 have?

An LED screen with a 4-digit TFT counting display and a 3-digit TFT batch display.

4. What are the LD-2610's power and size specifications?

AC220V-110V 50-60Hz, power consumption <=80W; dimensions 295x270x190 mm; net weight 5 kg; note size 50x110 to 90x180 mm, thickness 0.075-0.15 mm.

5. Does Easy-Banker accept OEM/ODM orders for the LD-2610?

Yes. Easy-Banker manufactures currency counters, banknote sorters, money detectors and cash handling equipment. OEM/ODM customization is available - contact sales for MOQ, pricing and lead time.

Features	Automatic start, stop and clear.	√

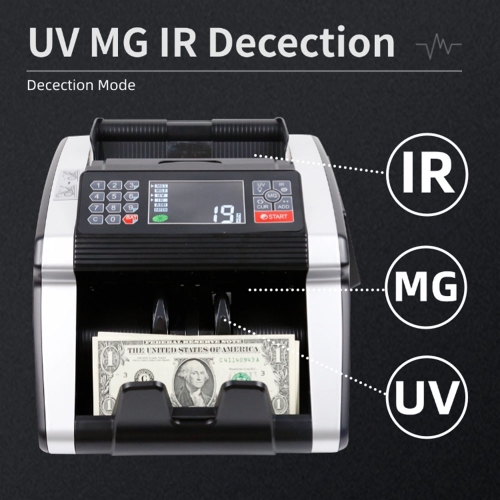

	UV (ultraviolet) detection: can detect banknotes with suspected UV properties, because fake notes often use white or bleached paper which will reflect UV light and make the surface of note very bright. Real banknotes can absorb UV light.	√
	MG (magnetic) detection: can detect banknotes without MG properties, because most of banknotes are printed using magnetic ink.	√
	Batch function: allows you to preset a specific number of bills that the machine will count up to.	√
	Add function: allows cumulative counting of all bills, up to a maximum of 999 bills.	√
	Automatic half-note, chained note, double-note detection.	√
	Suitable for most currencies in the world.	√
	To be with screen display.	LED screen
	DD detection：Banknotes are detected by width.The first note of a pile is defined as the reference width，and the message “Width Different” will be shown when a different width of note has been identified.	√
	Mix value counting and denomination/version sort function.	×
Specifications	Hopper Capacity(pcs)	130
	Stacker Capacity(pcs)	130
	Counting Speed(pcs/min)	900 pcs/min
	Power Supply(V)	AC220V-110V 50-60Hz
	Power Consumption(W)	≤ 80W
	Counting Display	4 digits TFT
	Batch Display	3 digits TFT
	Size of Countable Notes(mm)	50×110-90×180
	Thickness of Countable Notes(mm)	0.075-0.15
	Work Temperature(°C)	0°C-40°C
	Noise(dB)	<60dB
	Continuous Working time(minutes)	>30 minutes
	Dimensions(mm)	295x270x190mm
	Net Weight(kg)	5
Carton Packing Details	Dimensions (mm)	375x315x262mm
	Gross Weight (kg)	6
	Quantity(pcs )	1

LD-2610
