Q1: What detection functions does the LD-30A have?
The LD-30A provides UV (ultraviolet) and MG (magnetic) detection with automatic half-note, chained-note and double-note detection, plus automatic start, stop and clear, as listed in its official specification table.
Q2: How fast does the LD-30A count and what is its capacity?
Counting speed is ≥600pcs/min with a stacker capacity of , per the published specification table of the LD-30A.
Q3: What power supply does the LD-30A use?
The LD-30A runs on AC220-100V 6V DC6V/1.5A with power consumption <=4W, as listed in its official specification table.
Q4: Which banknote sizes can the LD-30A handle?
Countable note size is Min130No50mm Max180No100mm; machine dimensions are 190No75No102 and net weight 0.4.
Q5: Does Easy-Banker accept OEM/ODM orders for the LD-30A?
Yes. Easy-Banker manufactures currency counters, banknote sorters, money detectors and cash handling equipment. OEM/ODM customization is available - contact sales for MOQ, pricing and lead time.
| Features | Automatic start, stop and clear. | × | ||
| UV (ultraviolet) detection: can detect banknotes with suspected UV properties, because fake notes often use white or bleached paper which will reflect UV light and make the surface of note very bright. Real banknotes can absorb UV light. | × | |||
| MG (magnetic) detection: can detect banknotes without MG properties, because most of banknotes are printed using magnetic ink. | × | |||
| Batch function: allows you to preset a specific number of bills that the machine will count up to. | × | |||
| Add function: allows cumulative counting of all bills, up to a maximum of 999 bills. | √ | |||
| Automatic half-note, chained note, double-note detection. | √ | |||
| Suitable for most currencies in the world. | √ | |||
| To be with screen display. | LED Screen | |||
| Mix value counting and denomination/version sort function. | × | |||
| Specifications | Hopper Capacity(pcs) | 150 | ||
| Stacker Capacity(pcs) | ||||
| Counting Speed(pcs/min) | ≥600pcs/min | |||
| Power Supply(V) | AC220-100V 6V DC6V/1.5A | |||
| Power Consumption(W) | ≤4W | |||
| Counting Display | 3 digits LED | |||
| Batch Display | ||||
| Size of Countable Notes(mm) | Min130×50mm Max180×100mm | |||
| Thickness of Countable Notes(mm) | 0.075-0.15 | |||
| Work Temperature(°C) | ||||
| Noise(dB) | ≤30dB | |||
| Continuous Working time(minutes) | ||||

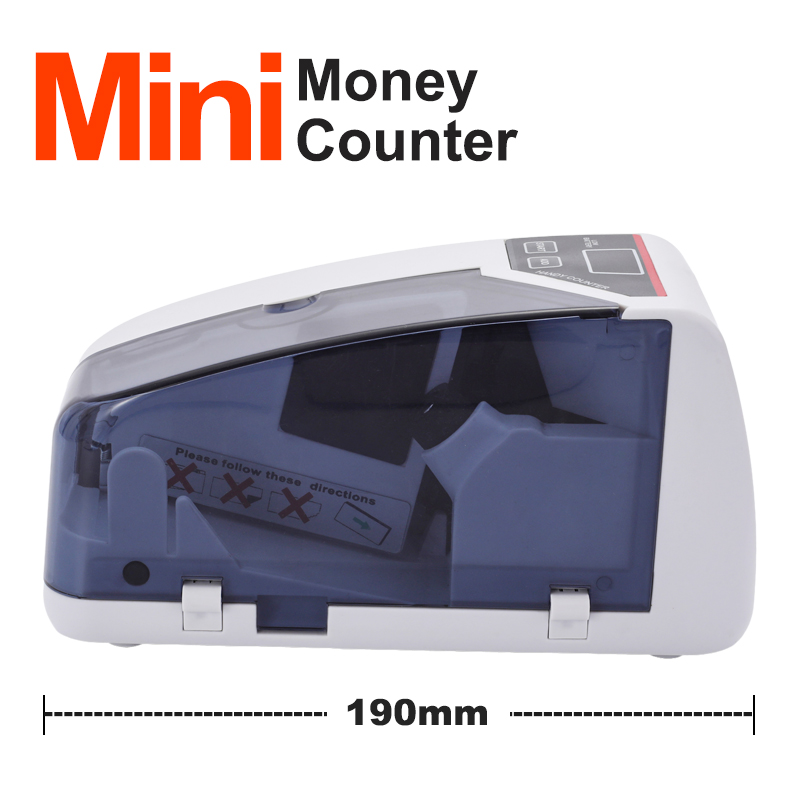

| Dimensions(mm) | 190×75×102 | |||
| Color Box Size(mm) | 205×126×95 | |||
| Net Weight(kg) | 0.4 | |||
| Carton Packing Details | Dimensions (mm) | 435×278×510 | ||
| Volume (m³) | 0.06 | |||
| Gross Weight (kg) | 14.5 | |||
| Quantity(pcs ) | 20 | |||
