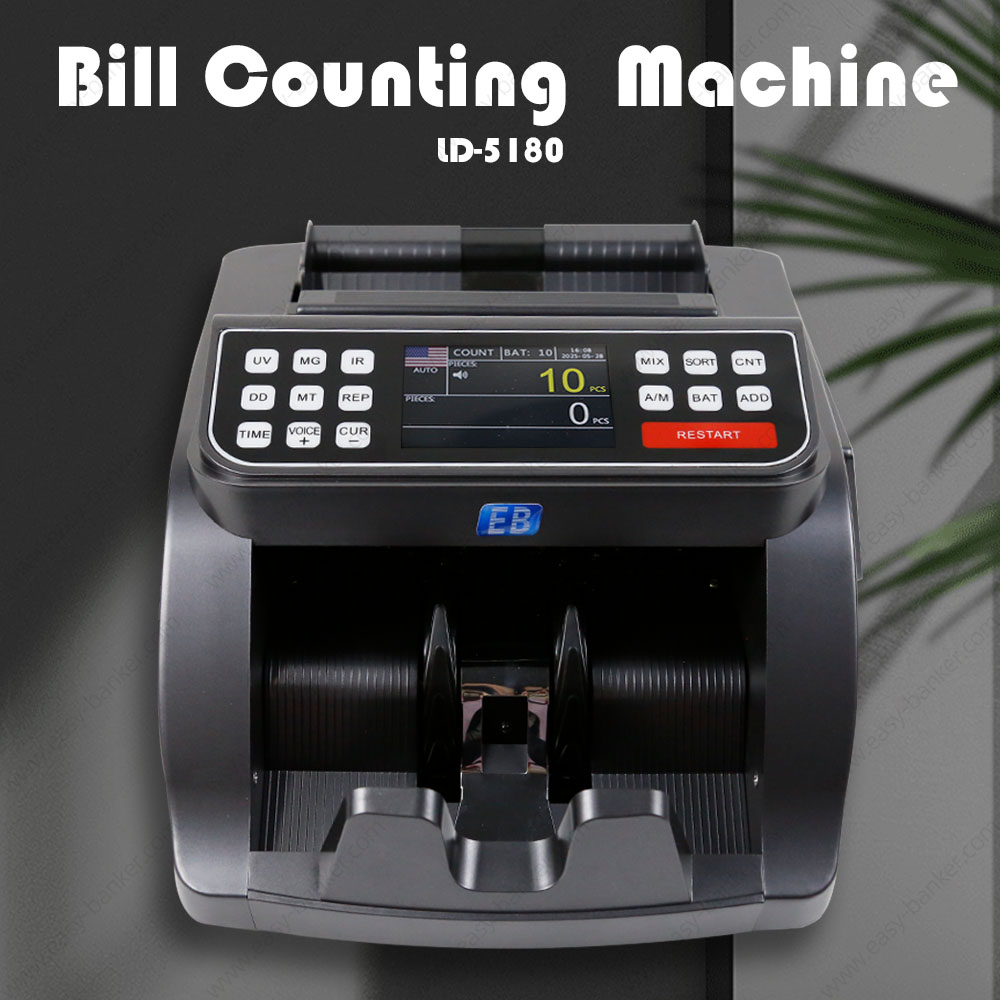

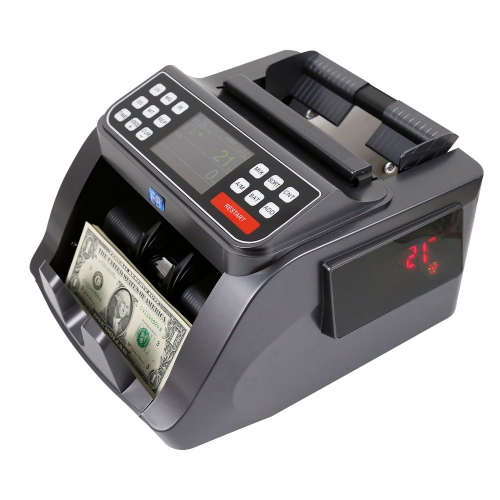

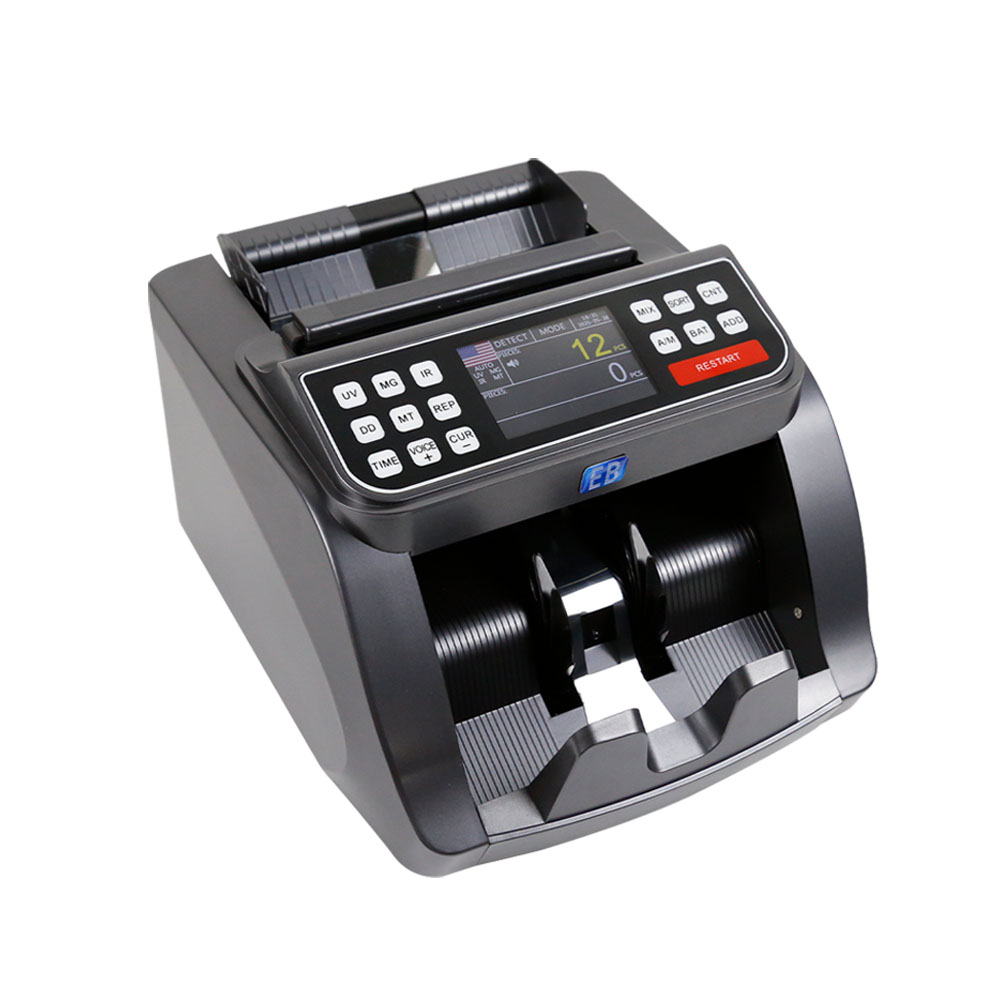

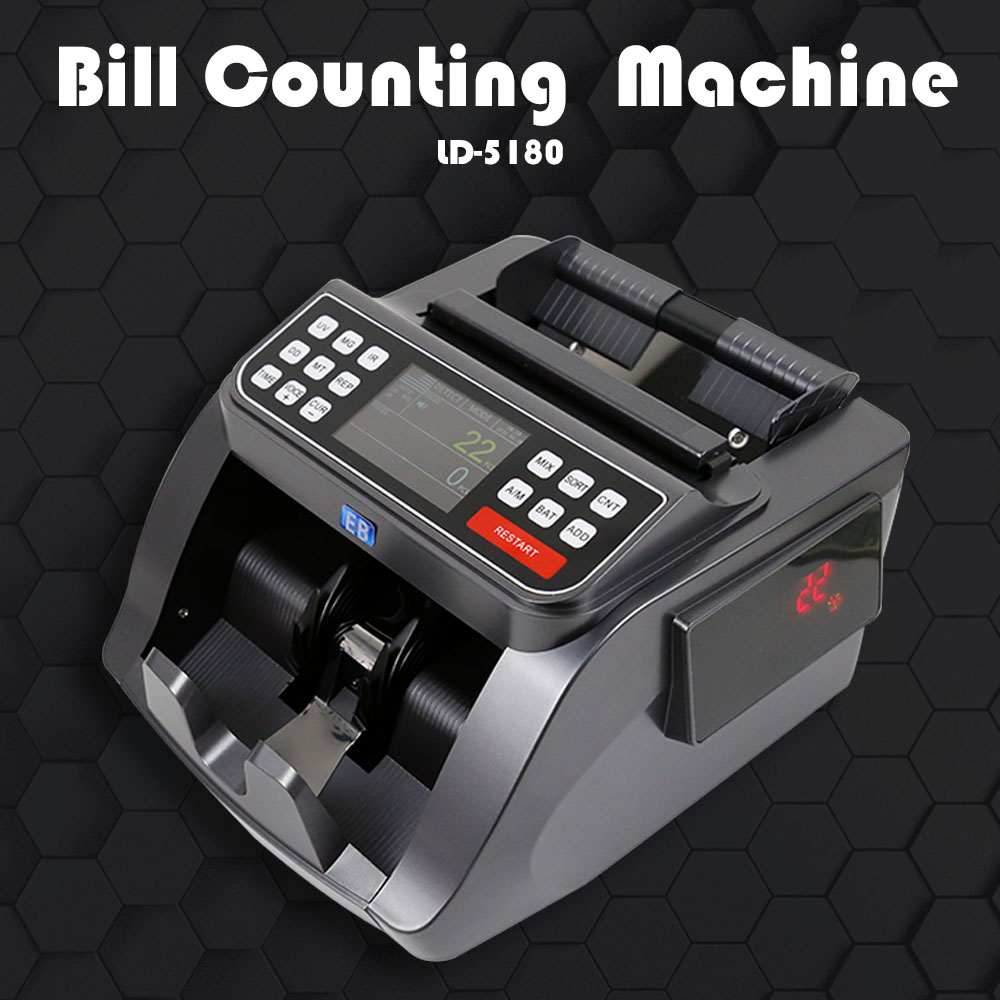

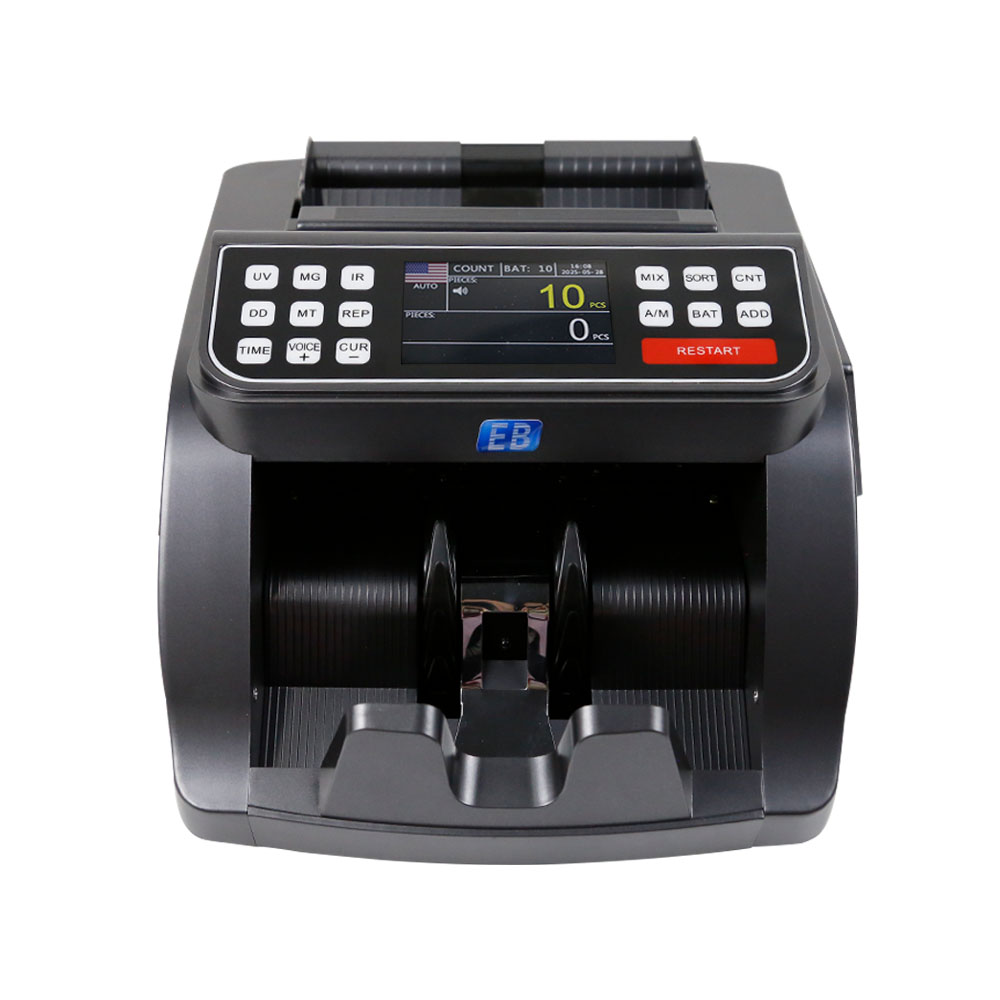

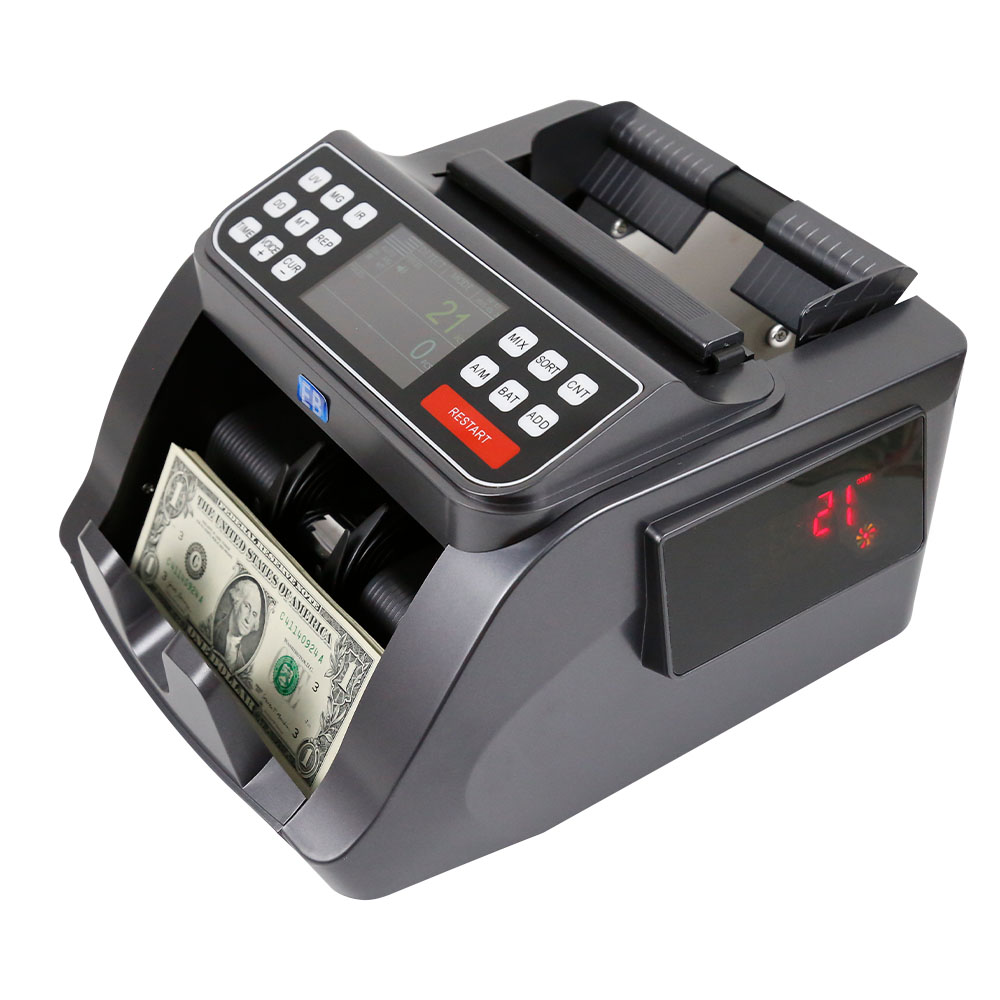

Q1: What detection functions does the LD-5180 have?
The LD-5180 provides UV (ultraviolet) and MG (magnetic) detection with automatic half-note, chained-note and double-note detection, plus automatic start, stop and clear, as listed in its official specification table.
Q2: How fast does the LD-5180 count and what is its capacity?
Counting speed is 1000 pcs/min with a stacker capacity of 130, per the published specification table of the LD-5180.
Q3: What power supply does the LD-5180 use?
The LD-5180 runs on AC220V-110V 50-60Hz with power consumption <= 75W, as listed in its official specification table.
Q4: Which banknote sizes can the LD-5180 handle?
Countable note size is 50No110-90No180; machine dimensions are 310x280x190mm and net weight 6.
Q5: Does Easy-Banker accept OEM/ODM orders for the LD-5180?
Yes. Easy-Banker manufactures currency counters, banknote sorters, money detectors and cash handling equipment. OEM/ODM customization is available - contact sales for MOQ, pricing and lead time.
| Features | Automatic start, stop and clear. | √ | ||
| UV (ultraviolet) detection: can detect banknotes with suspected UV properties, because fake notes often use white or bleached paper which will reflect UV light and make the surface of note very bright. Real banknotes can absorb UV light. | √ | |||
| MG (magnetic) detection: can detect banknotes without MG properties, because most of banknotes are printed using magnetic ink. | √ | |||
| Batch function: allows you to preset a specific number of bills that the machine will count up to. | √ | |||
| Add function: allows cumulative counting of all bills, up to a maximum of 999 bills. | √ | |||
| Automatic half-note, chained note, double-note detection. | √ | |||
| Suitable for most currencies in the world. | √ | |||
| To be with screen display. | LED screen | |||
| DD detection：Banknotes are detected by width.The first note of a pile is defined as the reference width，and the message “Width Different” will be shown when a different width of note has been identified. | √ | |||
| Mix value counting and denomination/version sort function. | × | |||
| Specifications | Hopper Capacity(pcs) | 130 | ||
| Stacker Capacity(pcs) | 130 | |||
| Counting Speed(pcs/min) | 1000 pcs/min | |||
| Power Supply(V) |
AC220V-110V 50-60Hz |
|||
| Power Consumption(W) | ≤ 75W | |||
| Counting Display | 4 digits TFT | |||
| Batch Display | 3 digits TFT | |||
| Size of Countable Notes(mm) | 50×110-90×180 | |||
| Thickness of Countable Notes(mm) | 0.075-0.15 | |||
| Work Temperature(°C) | 0°C-40°C | |||
| Noise(dB) | <60dB | |||
| Continuous Working time(minutes) | >30 minutes | |||
| Dimensions(mm) | 310x280x190mm | |||
| Net Weight(kg) | 6 | |||
| Carton Packing Details | Dimensions (mm) | 660x360x260mm | ||
| Gross Weight (kg) | 14.5 | |||
| Quantity(pcs ) | 2 | |||
