Q: What codes can the HBS-200W read?
A: The HBS-200W is a 2D image-scanning barcode reader that decodes QR codes and 1D/2D barcodes on labels and screens; Key trigger/ auto-sensing/ continuous scanning. High-speed decoding with buzzer and LED prompts.
Q: Is the HBS-200W wireless?
A: Yes - Bluetooth link: Wireless 2.4G: 0-80m (open environment).
Q: Which interfaces does the HBS-200W provide?
A: USB-HID keyboard/ USB-COM virtual serial port.
Q: Does Easy-Banker accept OEM/ODM orders for the HBS-200W?
A: Yes. Easy-Banker manufactures currency counters, banknote sorters, coin sorters, money detectors, banding machines, POS terminals, printers and scanners. OEM/ODM customization is available - contact sales for MOQ, pricing and lead time.
Q: What after-sales support comes with the HBS-200W?
A: Engineering support, firmware/currency updates and spare parts from the Easy-Banker factory; distributors receive training material and remote commissioning assistance.
| Features | High-speed decoding, responsive | √ |
| Strong versatility: USB, USB-COM and other interfaces are provided | √ | |
| Equipped with vibration feedback prompts | √ | |
| Compact, lightweight, ergonomically designed and comfortable in the hand | √ | |
| Support remote online upgrade | √ | |
| Outstanding durability: IP54 rated for dust and water resistance, while withstanding a 1.5- meter drop to a concrete floor | √ | |
| Base | × | |
| Wireless design | √ | |
| Specifications | Scan mode | Key trigger/ auto-sensing/ continuous scanning |
| Communication interface | USB-HID keyboard/ USB-COM virtual serial port | |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment) | |
| Interface type | ||
| Prompt way | Buzzer, LED light | |
| How it's set up | Manually scan the setup codes one after the other | |
| Housing material | ABS+PC | |
| Cable standards | USB 1m | |
| Internal storage | ||
| Sensors | 300,000 roller shutters CMOS | |
| Resolution | 640*480 | |
| Light source | White LED | |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation) | |
| Scan rate | 120 frames | |
| Field of view | 48° (H) x 30° (V) | |
| Print contrast | 15% minimum | |
| Decode the kind | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, MaxiCode, Aztec Code, support mobile screen reading | |
| Minimum resolution | 1D code 3.5MIL; QR code 10MIL | |
| Depth of field | QR (15mil) 30~210mm QR payment code (mobile code) 80~550mm Data Matrix (10mil) 30- 140mm PDF 417 (6.7mil) 50- 120mm EAN-13 (13mil) 50~280mm Code 39 (8mil) 30- 190mm Code 128 (15mil) 80~320mm | |
| Input voltage | DC 5V±10% | |
| Current | Working: 350 mAh; Standby: 130 mAh | |

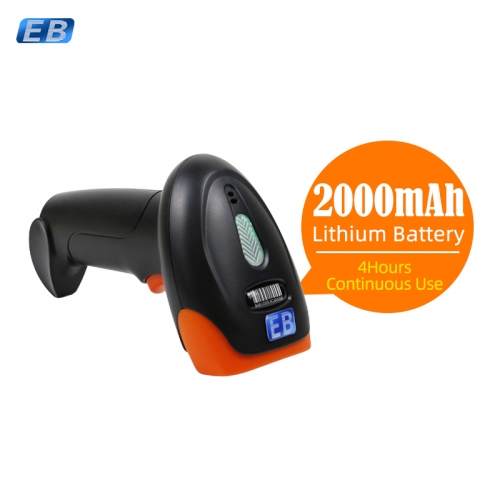

| Battery | 2000mAh lithium-ion battery | |
| Charging time | 4 hours | |
| Battery life | 30 days (standby), 72 hours (working: scan every 5 seconds). | |
| Temperature | 0°C~50°C(working); -40°C~+60°C (storage). L46 | |
| Humidity | 5%-95% non-condensing | |
| Ambient brightness | Max.5,000 Lux (fluorescent) | |
| Seismic resistance | It can withstand a 1.5m drop in the air | |
| Dimensions (mm) | 160mm×66mm×95mm | |
| Weight (g) | 165.1g | |
| Carton Packing Details | Dimensions (mm) | 200x105x80mm/550x420x440mm |
| Gross Weight (kg) | 0.284kg/14.7kg | |
| Quantity(pcs) | 1/50 |
