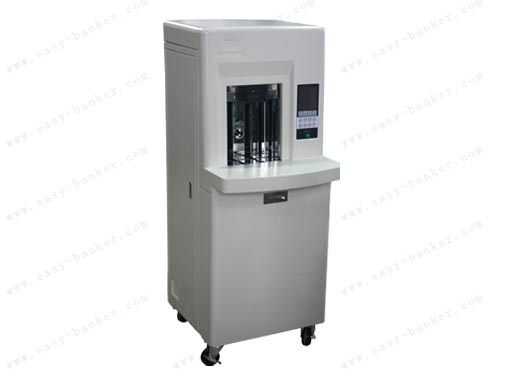

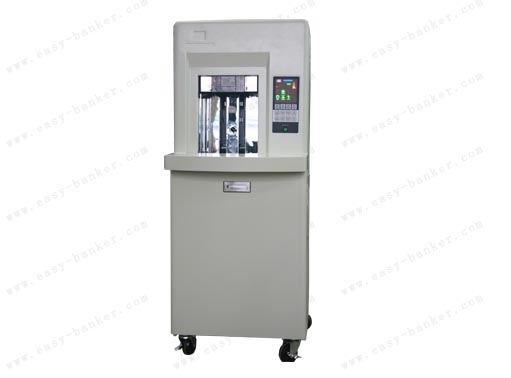

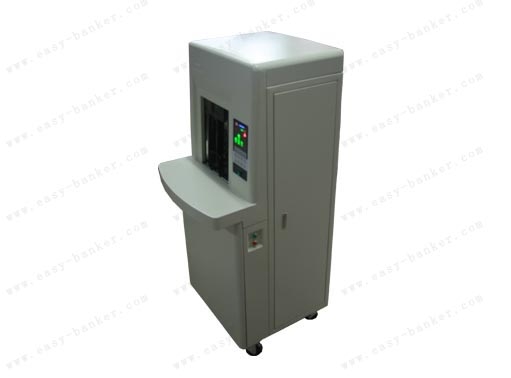

Banknote Strapping Machine JB-400

Item No.: JB-400
Description Details Video Download
1. Applicable Scope
This binder, catering to the specification requirement of 6-16mm, is applicable to the intact and scathing paper currencies of RMB with face value from 10 cents to 100 RMB..
2. Binding Speed
Lower than 15 seconds for one bundle, and specifically, press "Start" button only once to finish all the procedures, including closing the door, pressing, binding, and opening the door within 15 seconds.
3. Binding Height
As the openness of the cash feeding section is smaller than 225mm, thus the binder can be used in the binding of various old and scathing paper currencies
4. Binding Quality
This binder may realize double-cross plain and five-point sealing. The cohered section of the strapping tapes is equal to or higher than 80%. The binding is clearly-cut (the vertical and horizontal tapes cross in a square and the vertical tape is in the middle) and firm (the bundle will not disintegrate after a 5-meter falling down). Besides, the tension of the binding tape is larger than 200 N, leaving no space even for one finger. In conclusion, this binder satisfies Five-good standards of the People's Bank of China.
5. Safety Performance
The binder is designed a safety gate and photoelectric safety detection device. If you insert your hands into the cash feeding section, the binder will release the pressing plate, stop and send off an alarm. Besides, it can detect failure automatically with the failures displayed on the liquid screen in Chinese.
The binder will stop automatically in case of no operation for 30 minutes, ensuring security and saving energy.
6. Environmental Protection
The binder produces noise lower than 65 db, is dust-free, electromagnetic radiation free and gas pollution free, and harmless to human being.
7.  Cosmetic
Fine in techniques, beauty in appearance, normal in internal structure

1. Power supply: AC  220(1±10%)V   50Hz
2. Power: average: 150W, largest: 300W
3. Binding range: Minimum binding range (L×W×H) 110×52×80mm
               Maximum binding range (L×W×H) 180×80×180mm
4. Binding tape specification: (W×T) 12×0.5mm,14×0.5mm,16×0.25mm, 6×0.7mm
5. Binding speed: lower than 15 seconds for each bundle
6. Pressing strength: 4000~10000N
7. Terminal force at break: no lower than 90% of the previous force at break
8. Tight strength of tape: >200N
9. Noise: 65dB(A)
10. Dimensions: (L×W×H) (mm) 490×570×1230
11. Net Weight: 118Kg
Features Full automatic and quick binding
Microcomputer control and easy operation
Hot-press binding makes it artistic and firm
The position of binding paper tape is adjustable
Sticking time adjusting function
Tape-length adjusting function
Anyone can be a beautiful band,simple and indeed. Feeding method,the tail way.You can set the brand standby time, production capacity increases.(Goods GULD location frame as standard equipment)
The paper tape,plastic film strap as long as 1 ok. Since the company's unique body,tape,plastic film strap any kind of strap as long as 1 will be payble.
The standby time "0". Power supply everything into can immediately start,so the work effciency increases.
With the most appropriate force, firmly band. Tightening force, strong or weak, with the end of this, can be step less adjustment.
Even if not careful empty band (no matter band) and ok .The operator even because of careless nothing band, also won't tape on the pressure plate
Specifications Use tape
Binding speed lower than 15 seconds for each bundle
Power Supply(V) AC  220(1±10%)V   50Hz
Power Consumption(W)
Dimensions(cm) 49×57×123
Net Weight (kg) 118kg
Carton Packing Details Dimensions (cm)
Volume (m³)
Gross Weight (kg)
Gross Weight by Dimensions (kg)
Net Weight (kg) 118kg
Quantity(pcs )
