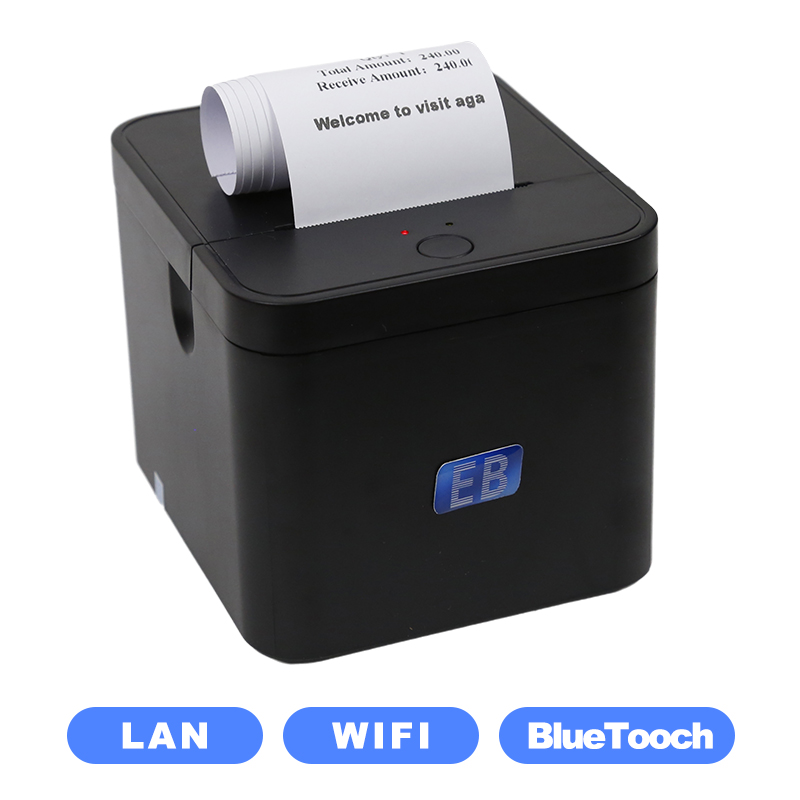

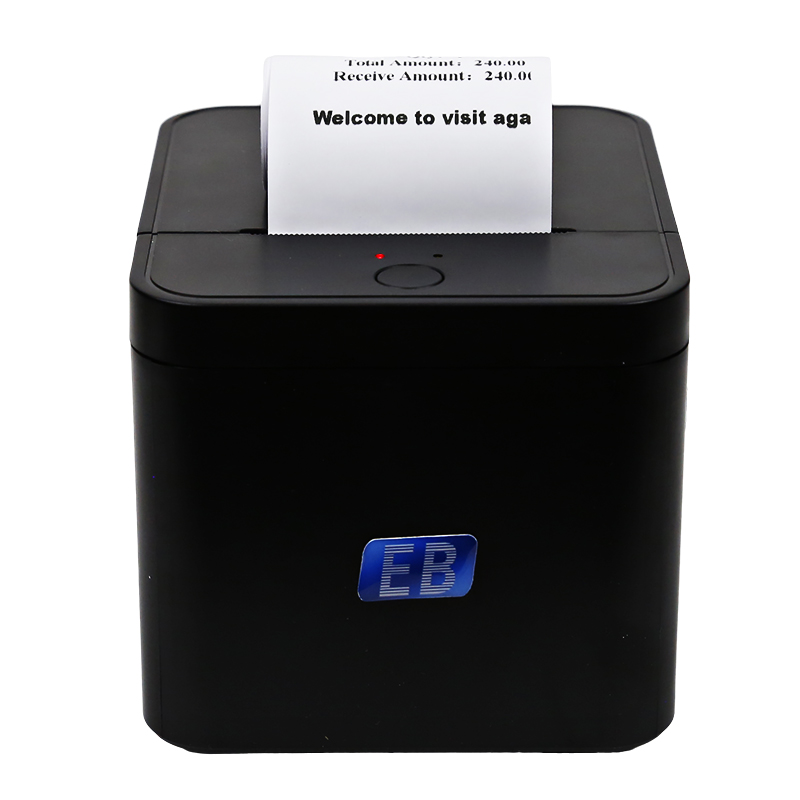

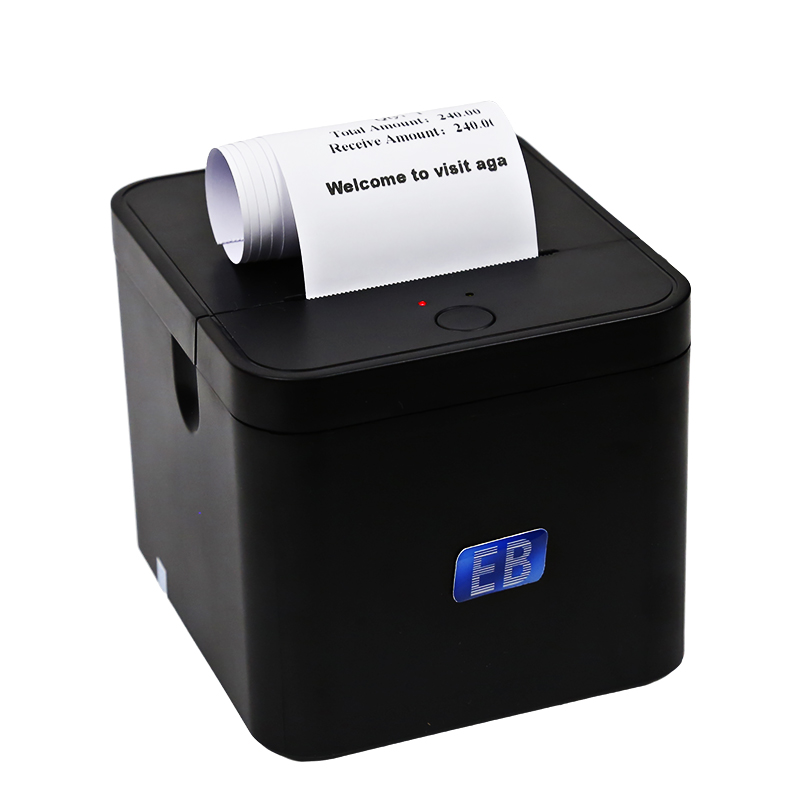

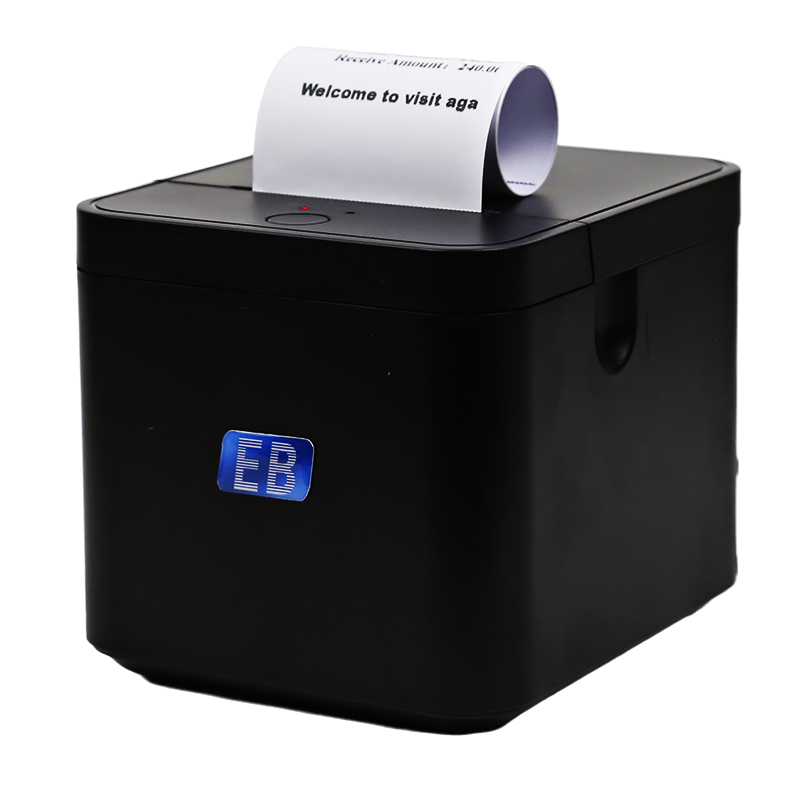

Q: What does the TCP-5890B print?

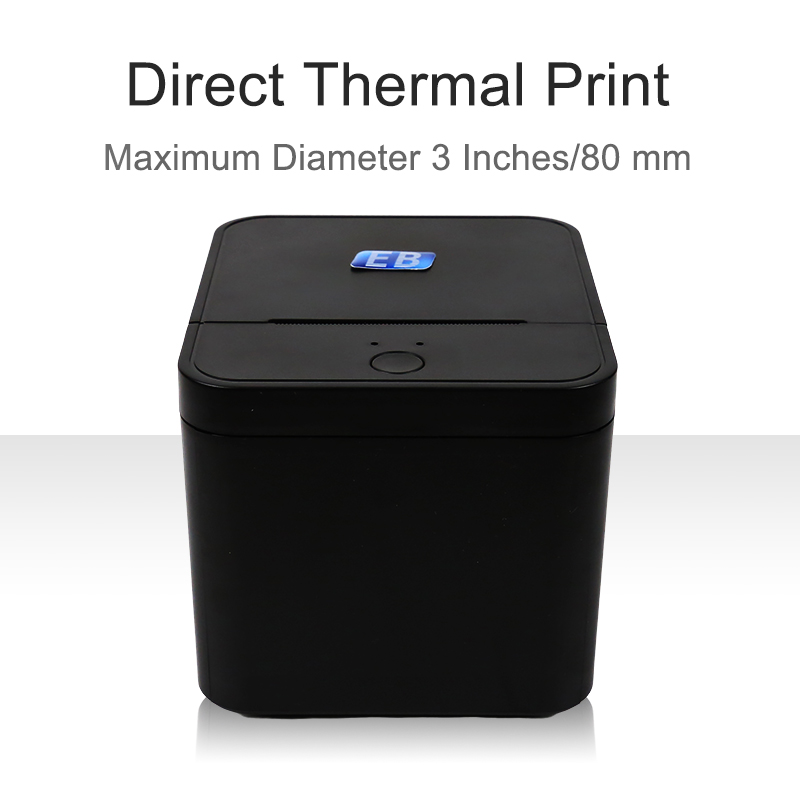

A: The TCP-5890B is an 80mm direct thermal receipt printer: Thermal Line Printing, 90mm/sec (max) print speed at 203DPI (8dot/mm) resolution, ESC/POS command set, and it prints labels.
Q: Which interfaces does the TCP-5890B offer?
A: USB+Bluetooth
Q: Is there an auto cutter?
A: Yes: auto cutter fitted with cutter life / and paper-out detection.
Q: What is the print head life?
A: Print head life 50km; desktop power supply.
Q: Does Easy-Banker accept OEM/ODM orders for the TCP-5890B?
A: Yes. Easy-Banker manufactures currency counters, banknote sorters, money detectors, banding machines, POS terminals, printers and scanners. OEM/ODM customization is available - contact sales for MOQ, pricing and lead time.
| Features | Thermal Paper Printing | √ | |
| Print Labels | √ | ||
| Support Bluetooth | √ | ||
| Support WIFI | √ | ||
| Support USB LAN | √ | ||
| Battery | × | ||
| Auto Cut | × | ||
| Paper Out Detection | √ | ||
| Specifications | Print Method | Thermal Line Printing | |
| Interfaces | USB+Bluetooth | ||
| Print Comand | ESC/POS | ||
| Print Speed | 90mm/sec (max) | ||
| Resolution | 203DPI (8dot/mm) | ||
| Printer Head Life | 50km | ||
| Cutter Life | / | ||
| Line Spacing | / | ||
| Logo | support downloading and printing logo | ||
| Printing Density | 384 dots/line | ||
| Extension Character Sheet | / | ||
| Character Size | ASCII Font A：12×24 ASCII Font B：9×17 Chinese: 24×24 | ||
| Supported Code | / | ||
| Character Per Line | Font A-32 lines/Font B-42 lines/Chinese-16 lines | ||
| Input buffer | 32 Kbytes / 64 Kbytes | ||
| Driver | Windows / Linux / MAC / OPOS | ||
| Power Adapter | DC 12V/3A | ||
| Power Battery | / | ||
| Cash Drawer | 12V/1A | ||
| Work Environment | Working: 0~45℃ Humidity: 10%-80% | ||
| Storage Environment | / | ||
| Paper | Paper Types | Thermal Roll Paper | |
| Paper Width | 57.5±0.5mm / φ 43 mm | ||
| Print Width | 48mm | ||
| Paper Thickness | 0.06-0.08 mm | ||
| Dimensions (mm) | 120x105x102mm | ||
| Weight (g) | 330g （with accessories) | ||
| Color box size（mm） | 170x138x112mm | ||
| Gross Weight (kg) | 0.58kg | ||
| Carton Packing Details | Dimensions (mm) | 572 x360 x 358 mm | |
| Gross Weight (kg) | 15 | ||
| Quantity(pcs) | 24 | ||
