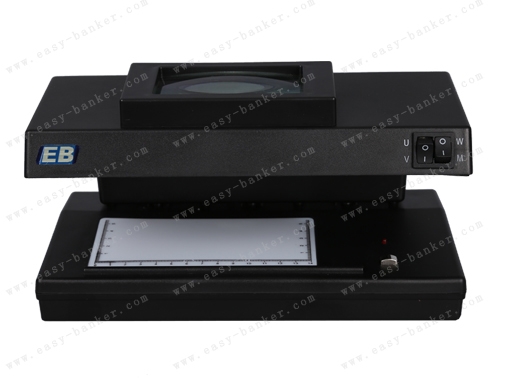

A plain UV lamp shows only fluorescence. The DC-106B adds a magnetic ink sensor, a 5X magnifier for micro-printing and a ruler area for size verification - four checks in one unit.
Yes. UV and magnification checks apply to passports, ID cards, cheques and security documents as well as currency.
Switchable 110V or 210/220/230V input; consumption is 2 x 6W UV lamps plus a 6W fluorescent lamp.
Body 270 x 150 x 165 mm, net weight 1.1 kg, shipped 12 pieces per carton (14 kg gross).
Yes. Easy-Banker manufactures currency detectors, banknote counters, sorters and cash handling equipment. OEM/ODM customization is available - contact sales for MOQ, pricing and lead time.
| Features | Ultraviolet light for UV features detection | √ | ||
| Magnetic sensor for magnetic ink detection | √ | |||
| Large magnifier for micro-printing detection | √ | |||
| Verifies all kinds of banknotes(bills),credit cards,traveller's cheques,passports,IDs,and other legal documents | √ | |||
| Area with a ruler for measureing paper currency size | √ | |||
| Specifications | Ambient Temperature(ºC ) | 0~40ºC | ||
| Ambient Humidity(%) | ≤85% | |||
| Sunlight Strength(LX) | 200~800LX | |||
| Power Supply(V) | 110V or 210, 220, 230V (switchable) |
|||
| Power Consumption(W) | UV lamp 2×6W Fluorescent lamp 6W |
|||
| Dimensions(mm) | 270×150×165 | |||
| Net Weight (kg) | 1.1 | |||
| Magnification Times | 5X | |||
| Carton Packing Details | Dimensions (mm) | 620×290×540 | ||
| Volume (m³) | 0.1 | |||
| Gross Weight (kg) | 14 | |||
| Net Weight (kg) | 13.2 | |||
| Quantity(pcs ) | 12 | |||
